TENMAK TAGEP · Project no. 1881 · Progress period 2

KAHVELab Lithium Project

An accelerator-driven 7Li(p,n) neutron source and a 6Li converter at the Kandilli campus of Boğaziçi University.

Aytül Adıgüzel1 · Eda Erbayrı Güneş · Ayşe Sude Işık1 · İlayda Yaren Kafkas1 · Hezin Serez Kaya2 · Muhammet Ali Kaya1 · Ümit Kaya3 · Atacan Kılıçgedik4 · Erkcan Özcan5 · Deniz Polat2 · Görkem Türemen · Gökhan Ünel6

1 İstanbul University · 2 Boğaziçi University · 3 Ankara University · 4 Marmara University · 5 İstinye University · 6 UC Irvine University
2 MeV
proton beam, 1 µA peak current
20 µm
selected 7Li thickness
2.384×105 s−1
3H nuclei at 1 µA, 2% duty
10 000×
below the dose limit, shielded

The PTAK 2 MeV proton beamline

KAHVELab is located on the Kandilli campus of Boğaziçi University and operates PTAK — Proton Testbeam at Kandilli.

The injector consists of a microwave-discharge ion source, a permanent-magnet LEBT, a diagnostics box and an 800 MHz RFQ. All elements were designed and manufactured in Türkiye.

The output is a 2 MeV proton beam at 1 µA peak current and low duty factor. Within TAGEP 1881, this beam is used to drive a compact neutron source, and the resulting neutrons are used to breed 3H in a second lithium target.

The two-stage reaction chain

The first reaction is endothermic and requires 1.88 MeV. A 2 MeV beam therefore operates 120 keV above threshold, where the emitted neutrons are soft and forward-peaked.

The second reaction is exothermic, has no threshold and has a positive Q-value of about 4.78 MeV, meaning it occurs readily with thermal and slow neutrons rather than fast ones.

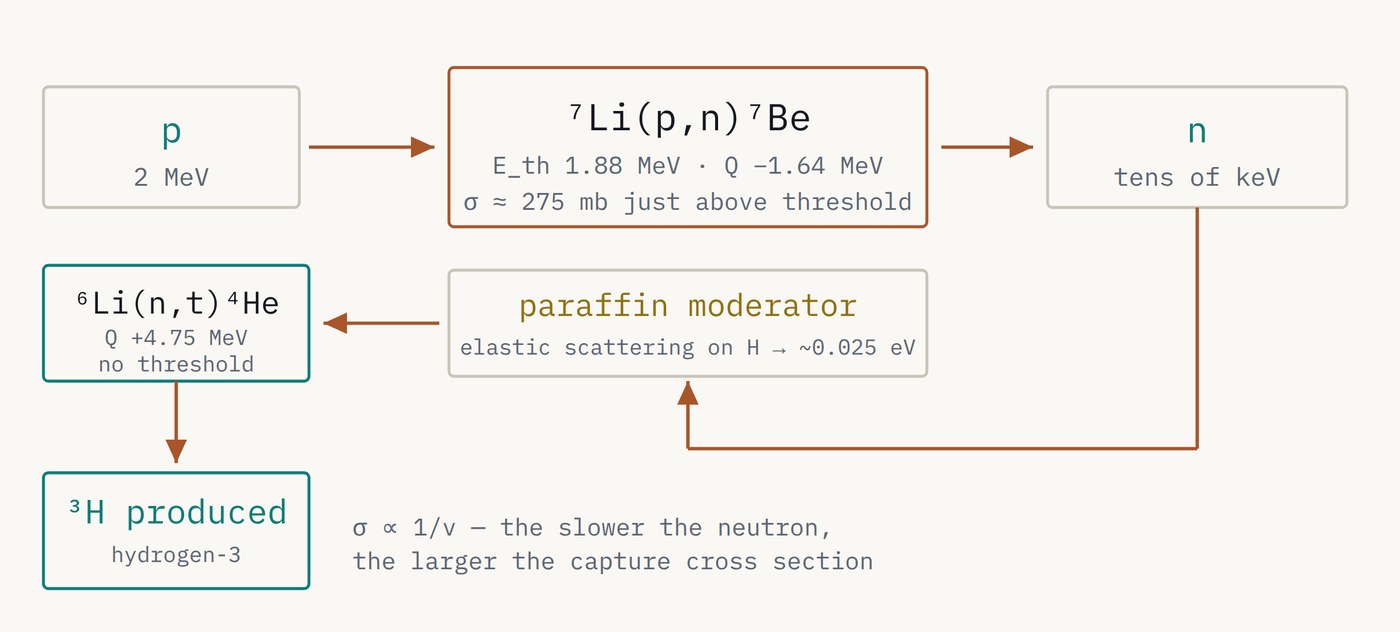

Reaction chain from the proton to 3H
The chain: the 7Li source, the paraffin moderator, the 6Li converter, and the 3H produced.

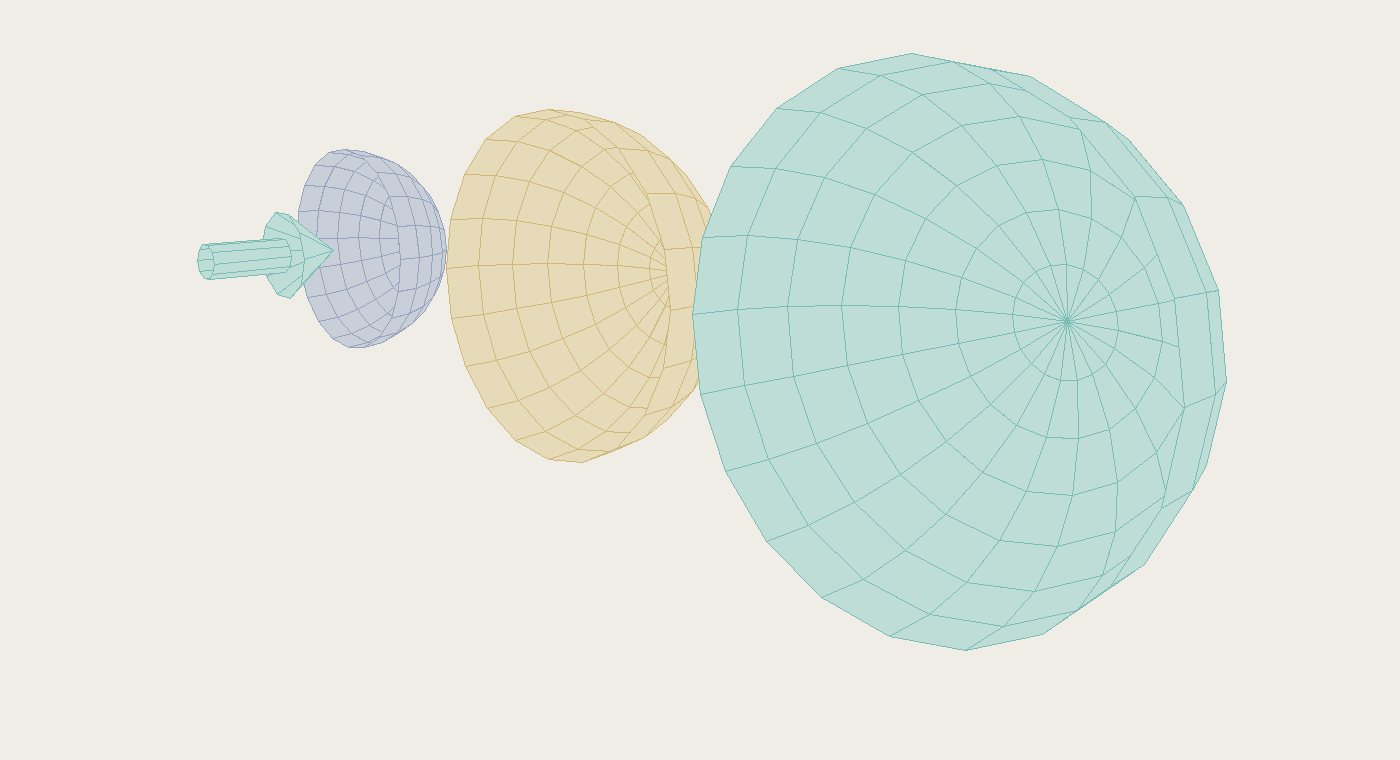

7Li source, paraffin moderator, 6Li converter
7Li source · paraffin moderator · 6Li converter.

From a planar target to hemispherical shells

The principal change of this period. In the first report the target was a 20 µm planar sheet, and two major losses were identified that a planar surface cannot fix.

  • Angular escape. Neutrons are emitted over a wide cone, whereas a flat plate subtends only the forward direction. A substantial fraction never reached the copper or the paraffin.
  • Lateral escape. Neutrons that did enter the paraffin drifted sideways and left through the side boundary before thermalisation was complete.

With hemispherical shells every emission angle is intercepted and lateral leakage is removed by construction.

LayerMaterialDimension
0vacuum channelr = 0.5 cm
17Li20 µm
2Cu (finned)1 mm
3paraffin5 cm
46Li100 µm
5steel frameenclosure

The beam travels along the symmetry axis, entering from the left through the evacuated channel. The copper is finned, and serves as both heat removal and beam stop.

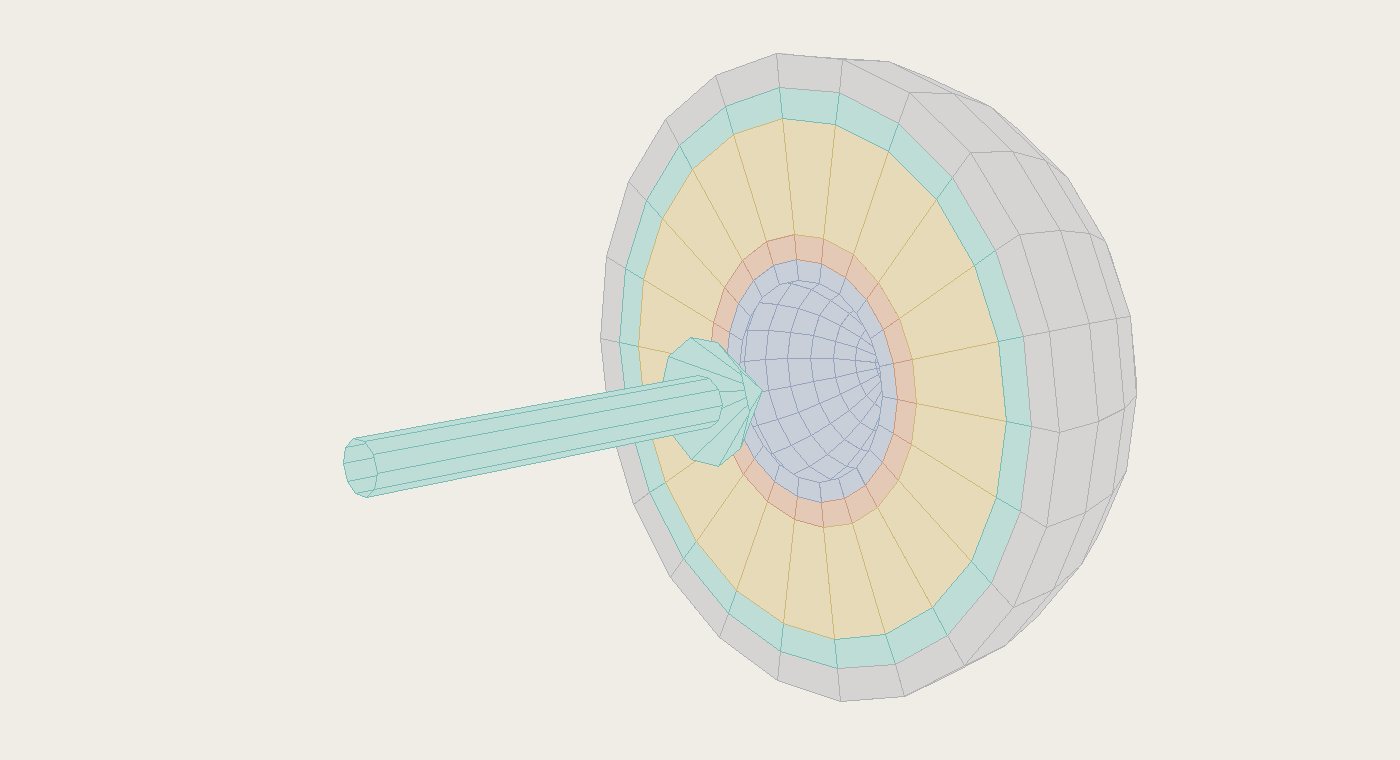

The assembly with the layers separated
The redesigned target, drawn with the layers separated.

Status of the work packages

WPScopeStatus
WP1Target-1 (7Li) simulationscomplete
WP2Radiation simulations (FLUKA)complete
WP3Neutron thermalisationcomplete
WP4Target-2 (6Li) & shieldingcomplete
WP5Beamline & proton diagnostics80%
WP6Radiation shielding structurenext
WP8Target system engineeringnext

Results of this period

Three major developments were not foreseen in the original plan: the geometry redesign, the move of the thermal analysis from FLUKA to ANSYS, and WP5 moving from design to delivered hardware.

7Li thickness and lifetime

The thickness was scanned over 5–100 µm at 107 protons per point and assessed against the 1.88 MeV threshold. 20 µm was selected and confirmed at 108 protons. The 1 mm copper backing extinguishes the primary proton flux completely.

Burn-up from the RESNUCLE card gives 6.77×10−5 nuclei per proton against 6.97×1019 7Li atoms in the target. With the 2% duty factor, half-consumption occurs at 4.12×1012 s — about 1.3×105 years. Burn-up is therefore not a design constraint; target life will be limited by surface oxidation and thermal cycling.

Neutron energy spectrum

The flux was scored with USRBDX at 109 primaries and a Landau function was fitted in Python to extract the most probable value.

GeometryMPV
hemispherical shell40.82 ± 0.44 keV
planar sheet49.72 ± 0.41 keV

Same material, same nominal thickness, ~9 keV apart. No single cause has been confirmed; the discrepancy is reported openly and remains under investigation.

7Be production

The 7Li(p,n)7Be reaction produces neutrons and simultaneously leaves beryllium-7 in the target. 7Be has a 53-day half-life, emits a 477 keV gamma, and beryllium is chemically toxic.

Scored with RESNUCLEI: 2.30×10−5 per primary proton, which is 1.44×108 per second at 1 µA and 2.87×106 per second at the actual 2% duty factor. The activity is modest, but it is confined to the 20 µm layer that will eventually be removed and replaced, so it governs the handling procedure rather than the shielding design.

Moderation and the 6Li converter

The flux entering the moderator is 2.714×10−5 neutrons per primary. The thickness was scanned at 108 primaries per point, recording both the total flux leaving the paraffin and the thermal component (< 0.025 eV).

ThicknessTotal outThermal outThermal frac.
1 cm2.242e−051.14e−080.05%
4.5 cm1.278e−057.01e−075.49%
5 cm1.157e−058.385e−077.25%
5.5 cm1.021e−058.381e−078.21%
7 cm6.828e−066.12e−078.96%
50 cm00

The thermal fraction rises monotonically with thickness, whereas the thermal flux peaks at 5 cm and then falls as absorption takes over. Production scales with flux, so 5 cm was selected.

A 6Li shell encloses the paraffin so that thermalised neutrons meet it radially. Capture was scored with USRBDX and the product nuclei with RESNUCLEI, at 108 primaries per point.

6Li thicknessCapture eff.3H / primaryMass
0.01 cm27.7%1.910e−060.91 g
0.1 cm61.4%5.78e−069.3 g
1 cm80.5%7.93e−06108 g
10 cm94.3%9.50e−063.5 kg
50 cm99.7%1.008e−05166 kg

Going from 0.01 to 50 cm raises the capture efficiency from 28% to 99.7%, a factor of 3.6, at a cost of 360 litres and 166 kg of enriched 6Li, which is expensive and strategically controlled. 100 µm was selected: at 1 µA with the 2% duty factor, corresponding to 1.25×1011 effective protons per second, the yield is 2.384×105 3H nuclei per second.

Dose equivalent and the three-layer shield

Dose equivalent is the absorbed energy per unit mass weighted by the biological damage each radiation type causes, in sieverts; neutrons carry the higher weighting factor. It was scored with the FLUKA DOSE-EQ card at 108 primaries, neutrons and photons separately, with raw output in pSv per primary converted to Sv/h. The 2.5 µSv/h limit for occupied areas follows ICRP as adopted in NDK regulation.

CaseDose equivalentvs limit
unshielded, 1 µA4.54×10−9 Sv/h550× below
unshielded, 1 mA4.54×10−6 Sv/h1.8× over
shielded, outside2.5×10−10 Sv/h10 000× below

At 1 mA the dose falls to 2.35×10−7 at 60 cm, so shielding becomes mandatory. The shield has three layers: 1 mm Al stops low-energy secondary charged particles and beta radiation at source; 15 cm borated paraffin, where the hydrogen moderates the fast neutrons and the boron then absorbs them; and 40 cm concrete for the primary gammas and the capture gammas produced by the boron.

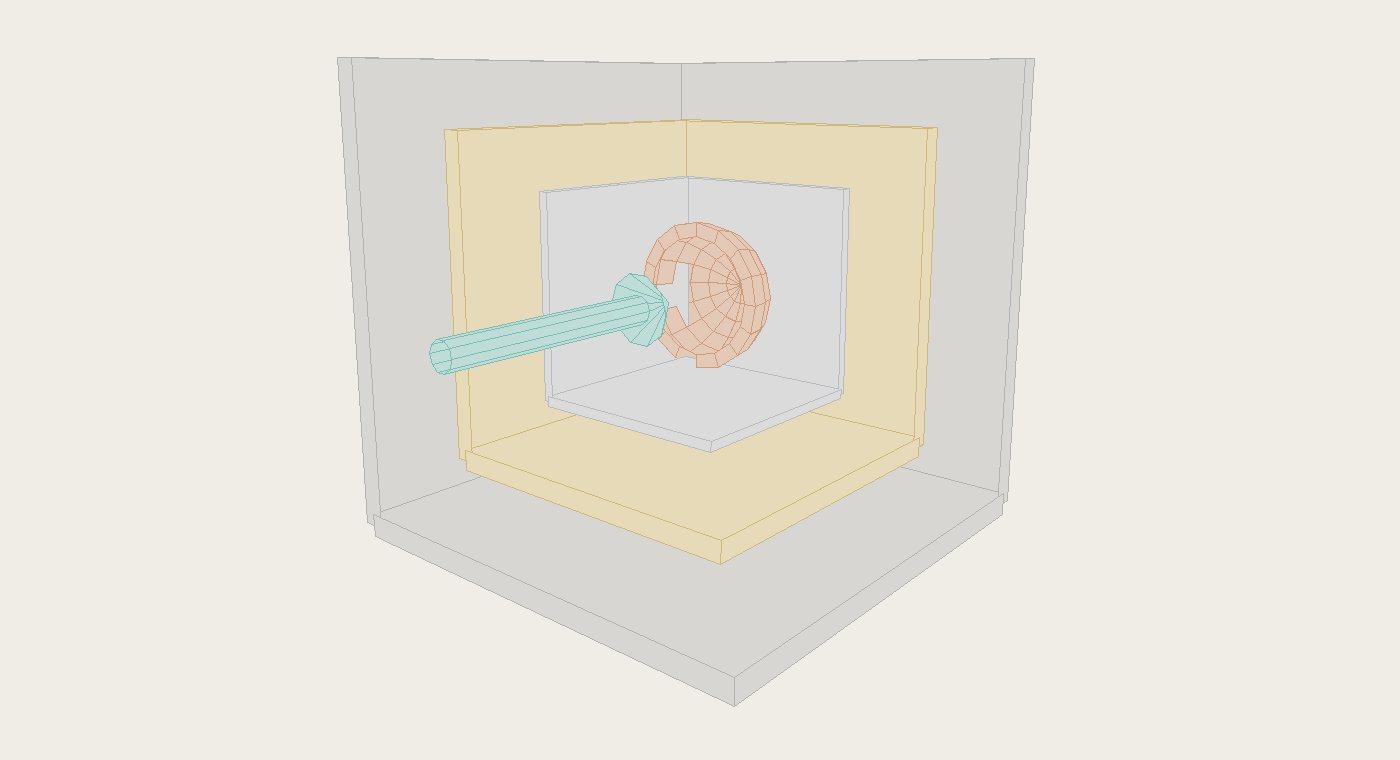

Three nested shells around the target
Three nested shells around the target.

Thermal analysis: from FLUKA to ANSYS

FLUKA was used to observe the deposited power, but it cannot model conduction, fluid flow or chiller systems, and pure lithium melts at about 180 °C in under two seconds. Resolving the full 300 s was computationally impractical, so an equivalent 1 Hz cycle was used at the same mean power and duty factor. Longer pulses with higher per-pulse energy provide a safe upper limit: if the 1 Hz model is safe, our 200 Hz machine is safe.

Beamline, magnets and diagnostics

The layout was fitted into a strict 4 m distance from the RFQ exit to the laboratory garden door, modelled in SOLIDWORKS, in the order RFQ → steerer → quadrupole triplet → steerer → dipole → target assembly. The dipole bend angle is fixed at 10° by the physical room dimensions. Optics were computed with DemirciPRO, our in-house code, and cross-checked with TRAVEL: the beam reaches the target at 0.3 mm RMS with zero particle loss.

RFQ work started at TAEK, now TENMAK NÜKEN, at 352 MHz. KAHVELab designed and built an 800 MHz cavity in two modules — the world's highest-frequency proton RFQ. The higher frequency enables a smaller cavity, delivering 2 MeV under 1 m for full transportability. It runs at 1 mA peak current, ~1% duty factor and ~30% injected-proton capture, and also supports portable PIXE for materials analysis, archaeology and museum applications.

The quadrupole triplet, the steerers and the dipole have all been delivered. On the bench at 13.3 A the triplet measured 1727 G against 1727.3 G predicted, and the PT100 thermal test reached ~55 °C, matching the steady-state model. The steerers give 4.4 mrad deflection at 3 A, homogeneity ΔB/B < 0.2% across ±1 cm, at 12.6 W and ΔT ≈ 1.4 K, so no cooling is needed.

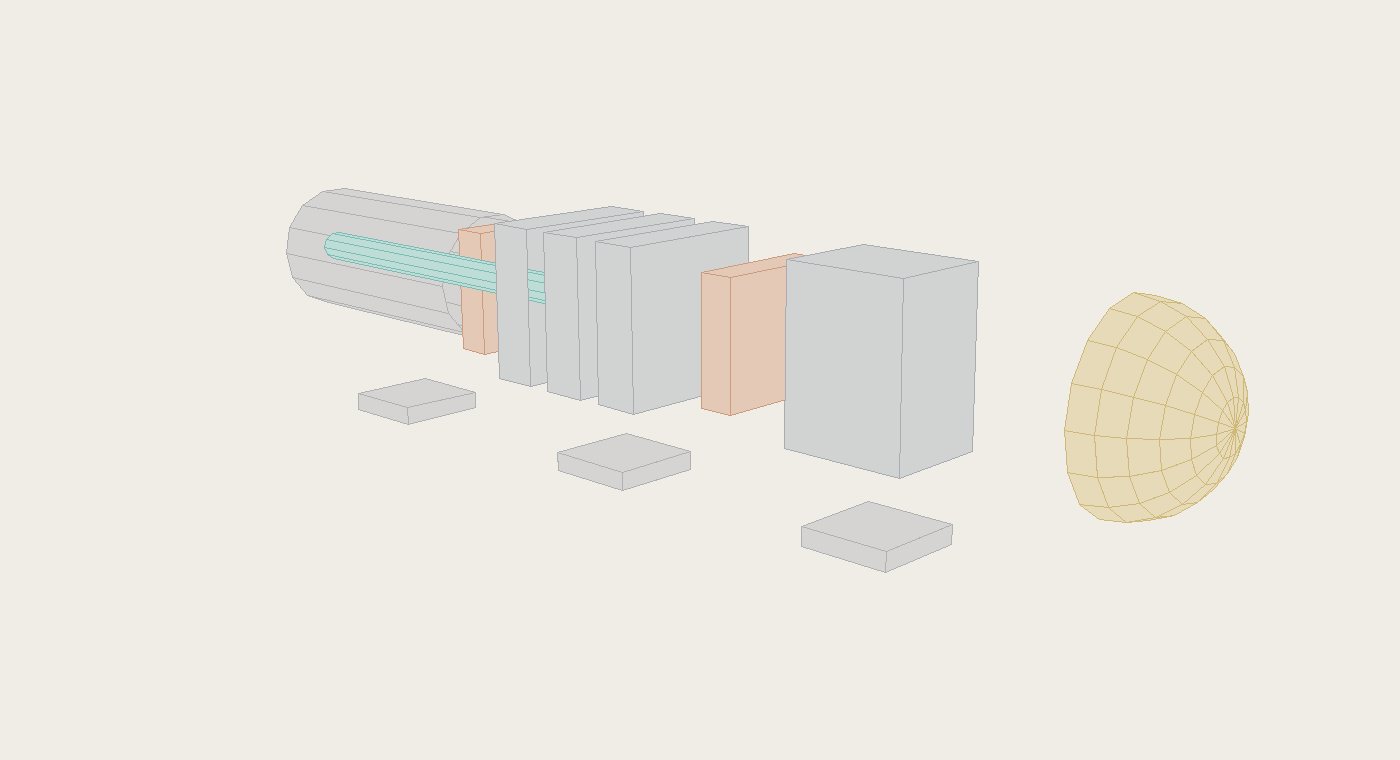

RFQ, steerers, triplet, dipole and target
RFQ → steerer → triplet → steerer → dipole → target.

For the scintillator screen, three criteria were applied before any simulation: high light yield, slow degradation of the light output under irradiation, and no afterglow. CsI(Tl), NaI(Tl) and P46 (YAG:Ce) were scanned in Geant4 from 10 to 50 µm. CsI(Tl) and NaI(Tl) retain their yield per MeV as the film is thinned, whereas P46 loses roughly half of it. Based on the analysis outputs we selected P46 (10 µm), P43 (50 µm) and NaI(Tl) (10 µm), with an aluminium backing to distribute the generated heat.

The Faraday cup was modelled in CST as three layers: a copper collector 5.0 cm deep and 5.5 cm wide, a 0.3 cm PTFE insulator, and a 0.5 cm copper guard ring held at −200 V. Leakage is zero under all three emission models tested. The design and analysis processes for the Faraday cup are not yet complete, but work is continuing.

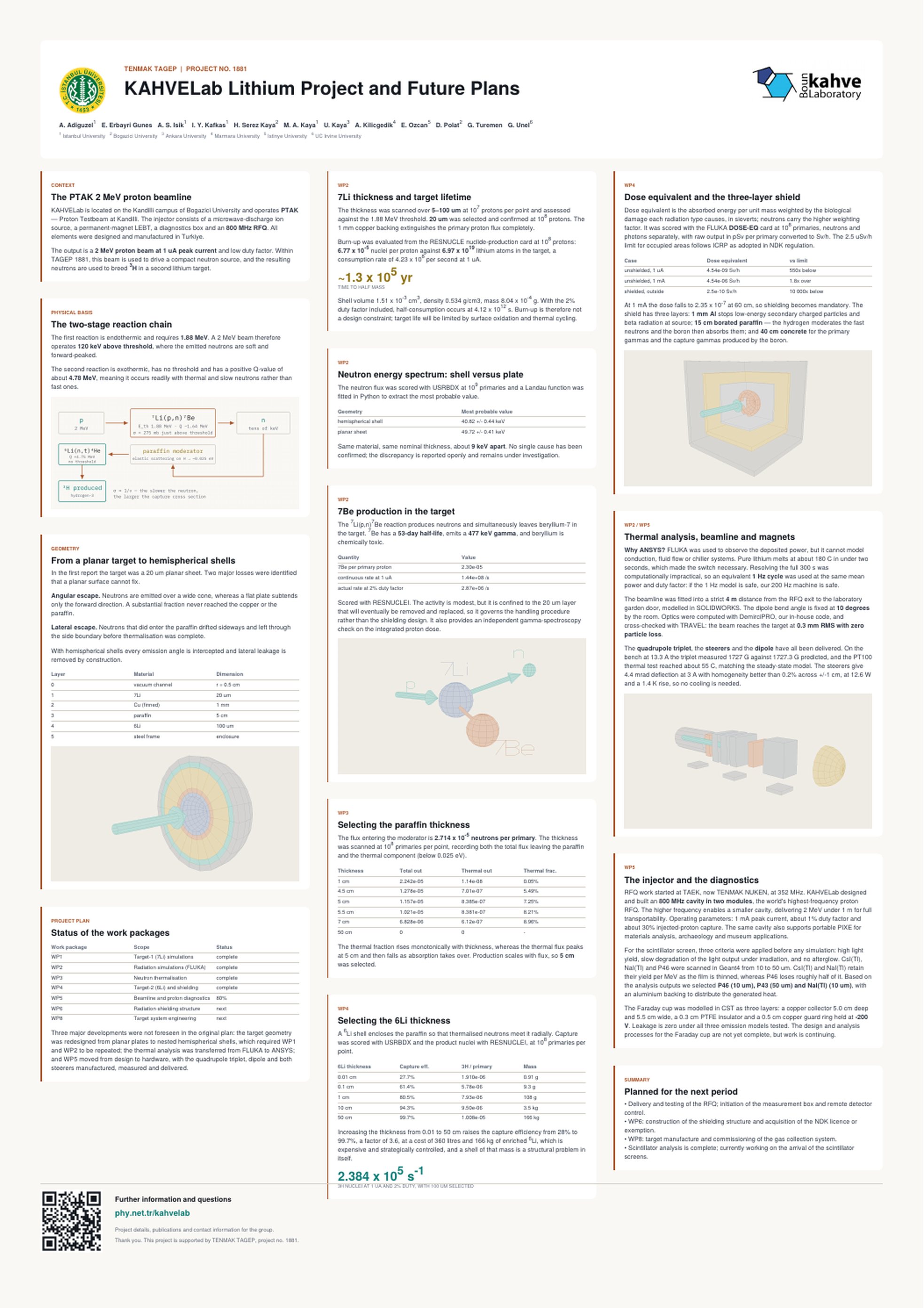

Summary poster

The whole reporting period on a single A1 sheet, ready to print.

Preview of the A1 summary poster

Download

A vector PDF at A1 (594 × 841 mm). It prints cleanly at A1 and stays legible scaled down to A2 or A3 for a handout.

Format  ·  PDF, A1 portrait, vector
Contents  ·  objective, reaction chain, geometry, simulation results,
              shielding, thermal analysis, beamline, diagnostics
Licence  ·  for academic and outreach use, please credit the group

Conclusions and future plans

Completed this period

  • Target geometry redesigned to nested hemispherical shells.
  • 7Li thickness fixed at 20 µm, paraffin at 5 cm, 6Li at 100 µm, giving 2.384×105 3H nuclei per second at 1 µA and 2% duty.
  • Radiation shield designed; the field outside is 10 000× below the legal limit.
  • Thermal analysis completed in ANSYS; quadrupole triplet, dipole and both steerers delivered.

Planned for the next period

  • Delivery and testing of the RFQ; initiation of the measurement box and remote detector control.
  • WP6: construction of the shielding structure and acquisition of the NDK licence or exemption.
  • WP8: target manufacture and commissioning of the gas collection system.
  • Scintillator analysis is complete; currently working on the arrival of the scintillator screens.
